+6-
Sleeps 5
-
3 Slides
-
U Shaped DinetteBath and a Half
-
39ft Long
-
Cityscape, Vintage Sandstone

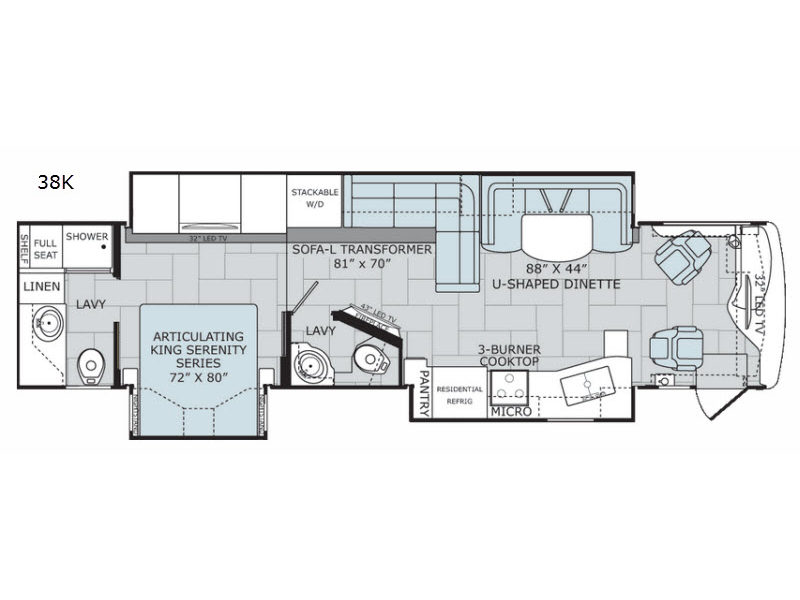

38K Floorplan
Specifications
| Sleeps | 5 | Slides | 3 |
| Length | 39 ft 4 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 10 in | Int Height | 7 ft |
| Interior Color | Cityscape, Vintage Sandstone | Exterior Color | Silver Ridge, Natural Freedom, Iron Blaze, Centennial |
| Hitch Weight | 10000 lbs | GVWR | 32400 lbs |
| Fresh Water Capacity | 105 gals | Grey Water Capacity | 75 gals |
| Black Water Capacity | 50 gals | Tire Size | 22.5" |
| Furnace BTU | 55000 btu | Generator | 8.0 KW Onan Quiet Diesel |
| Fuel Type | Diesel | Miles | 31700 |
| Engine | Cummins ISB 6.7L | Chassis | Freightliner XCM Series |
| Horsepower | 340 hp | Fuel Capacity | 100 gals |
| Wheelbase | 252 in | Available Beds | King |
| Torque | 700 ft-lb | Refrigerator Type | Residential |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Number of Awnings | 1 | Axle Weight Front | 12400 lbs |
| Axle Weight Rear | 20000 lbs | LP Tank Capacity | 38.7 |
| Water Heater Capacity | 16 gal | Basement Storage | 144 cu. ft. |
| TV Info | Above Cab 32" LED TV, Living Area 43" LED TV, Bedroom 32" LED TV | Awning Info | 10'8" |
| Washer/Dryer Available | Yes | Gross Combined Weight | 33000 lbs |
| Shower Type | Shower w/Seat | Electrical Service | 50 amp |
| VIN | 4UZACWDT2HCJH2860 |
Description
One and a half baths, a king size Articulating Serenity Series bed slide out, and a full wall slide are what makes this Navigator class A diesel motorhome by Holiday Rambler a "must have". Model 38K provides everything you need to have a wonderful experience traveling the countryside.
Step inside in front of the passenger side seat. The kitchen is directly behind and features a slide out with a kitchen sink, countertop extension, a three burner range, microwave, residential refrigerator, and a pantry for your dry and canned goods.
Along the opposite side enjoy plenty of seating with an 88" x 44" U-shaped dinette and L-sofa transformer that is 81" x 70 inside the full wall slide. Both can be turned into added sleeping space if needed at night, and provide ample seating during mealtime, or just hanging out.
Mid coach you will find a convenient half bath with toilet and sink along the curb side. Just outside the bathroom door along the angled outer wall there is a 43" LED TV and fireplace. The perfect addition for evenings when you just want to cozy up inside and enjoy a movie or relax with a bit of ambiance that a fireplace provides. There is also a 32" LED TV over the cab area so you can watch in any direction.
Beyond the L-sofa along the road side full slide you will find a stackable washer and dryer before entering the master bedroom. There are two wardrobes plus a 32" LED TV to finish up the slide. Along the curb side sleep comfortable on the Articulating King Serenity Series bed slide out. Nightstands can be found on either side of the bed.
The master bath is in the rear of this diesel coach and features a shower with full seat and shelf, a linen cabinet, toilet, and vanity with sink, plus overhead storage, plus so much more!
Features
- 12" x 24" Composite Plank Style Vinyl Flooring
- 120V/12V AC/DC Converter
- 25,000/30,000 Btu/h Dual Furnaces (38F, 38K)
- Water Heater 16-Gallon Output
- 84" Interior Ceiling Height
- Auto Generator Start
- Bedroom Heat Pump
- Ceiling Plenum
- Central Vacuum System
- Centralized Control Monitoring
- Crown Molding
- Dedicated Full-Length, Metallic A/C Ducting
- Deluxe Roller Bearing, Full Extension Drawer Guides & Transit-Ship Locks
- Demand Water Pump w/Filter
- Dual Roof-Mounted, High-Efficiency A/C w/Solar Panel, ChillGrilles & Bedroom Heat Pump
- Fan-Tastic® Power Roof Vent w/Wall Switch (2)
- Flat Interior Ceiling
- Four 6V Deep-Cycle House Batteries
- Hardwood Cabinet Doors/Drawers
- HDMI Video System
- LED Lighting
- Manual Day/Night Double Roller Shades
- Ozite Lined Storage
- Passenger Cup Holder Console
- Power Passenger Chair w/Power Footrest
- Satellite Radio (Subscription Required)
- Soft-Touch Vinyl Ceiling
- Spacious Wide Body Design
- Tuff-Pex™ Plumbing System
- Wall Switches (Includes Switches for Ceiling Lights & Vents)
- Wall-to-Wall Vinyl Tile Flooring
- Water Heater Bypass
- Water Pump Switches in Multiple Locations
- Whole Coach Water Filtration System
- Wood Finish Return Air Intake for Furnace
- Quiet Cool Ducted A/C
Options
- CSA Package (Canadian Specs)**
Driver Convenience
- (2) 12V Power Outlets at Dash
- 110V Power Outlet at Dash
- 3-Point Seat belts at Driver & Front Passenger Seats (w/Adjustable Shoulder Straps)
- Air Suspension Dump Switch
- Automotive Wrap-Around Dash
- Auxiliary Start Circuit Switch
- Color Back-Up Monitor w/Side Cameras Integrated in Mirrors
- Cruise Control
- Denso® High-Output Auto A/C Heater Combo
- Driver & Passenger Curtains
- Driver Console Cup Holders
- Driver/Passenger Soft-Touch Captain’s Chairs w/Reclining Back/Slide Controls w/Power Driver Seat
- Dual Dash Monitors
- Easy-Access Battery Disconnect System
- Front Power Roller Shades/Blinds
- Intermittent Wiper Control
- Remote Heated Power Exterior Mirrors w/Turn Signals & Side-view Cameras
- Soft-Touch Automotive Dash
- Tilt/Telescoping Steering Wheel
- Touch Screen Radio w/Built-In Rand McNally GPS w/ Main/Auxiliary Power Switch
Living Room
- 43" LED HDTV (38K)
- 5.1 Home Theater System w/Built-in AM/FM/DVD & Surround Sound Speakers
- Entry Assist Handle
- Fireplace (38F, 38K)
- Soft Touch Residential Style Seating
- Select Hardwood Overhead Face Frames
- TV Antenna w/Signal Booster
- BOSE Soundbar (38F)
- 49" LED HDTV (38F)
- Free Standing Dinette w/Credenza (38F)
Options
- Free-Standing Dinette w/Credenza (38K)
- Facing Dinette (38F)
- 95"x70" Sofa (38F)
Galley
- 3 Burner Range w/High Output/Piezo Ignitor w/Cooktop Cover
- Adjustable Cabinet Shelves (Select Cabinets)
- Cabinet Toe Kicks
- Full Mosaic Glass Tile Backsplash
- Galley Window w/Mini Blinds
- Select Hardwood Overhead Face Frames
- Solid Surface Dinette Tabletop
- Large, 50/50 Dual Stainless-Steel Sink
- LED Task Lighting
- Polished Solid-Surface Countertop w/Deco Edge
- Pull Out Pantry (38F)
- Residential Refrigerator w/2000W Inverter & 4 House Batteries
- Convection Stainless Steel Microwave Oven w/Built-in Range Hood & Lights
- Single-Handle Galley Faucet w/Pull Down Sprayer
- Polished Solid-Surface Dinette Table & Range Covers
- Under-Galley Shelving & Wastebasket
Options
- Dream Dinette Mechanism (38F)
Bedroom
- 32" LED HDTV
- Bedspread w/Decorative Pillows
- Dual 110V Outlets (Select Models)
- King Exclusive Dream Easy Series (38K)
- King Memory Foam Mattress (38F)
- Rear Speakers
- Overhead Cabinets
- Remote Generator Start Switch
- Under Bed Storage
- Wardrobe w/Cedar Lining
- 43" LED HDTV (38F)
Bathroom
- A/C Venting
- Adjustable Shelving (Select Cabinets)
- Glass Shower Enclosure w/Skylight & Low Threshold
- Hardwood Bath Door/Trims
- LED Lighting Over Sink
- Mosaic Glass/Stone Tile Back Splash
- One-Piece Fiberglass Shower w/Convenience Shelf
- Polished Chrome Double-Handle Faucet
- Polished Chrome Towel Bars & Rings
- Porcelain Toilet w/Water Saver
- Gemstone Sinks
- Vacuum Flush Toilet Bath (38F, 38K)
Interior Safety/Convenience
- 30" Wide Entry Door
- Carbon Monoxide, Propane & Smoke Detector/Alarm
- Central Electrical Panel
- Energy Management System (EMS) w/Soft-Start
- Fire Extinguisher
- Multiple Seatbelt Locations
- Neutral Loss Protection
Exterior Throughout
- 50-Amp Service w/LED Power Cord Indicators
- 8.0 kW Onan® Quiet Diesel Generator (38B, 38K)
- Aluminum Bus-Style Side Swing Luggage Doors
- Aluminum Extruded Slide Ramps
- Awning Rail/Drip Molding
- Clear Protective Front Mask
- Door-Side 110V Patio Receptacle
- Dryseal™ Edge Coating (Water-Wicking Wall Edge Coating)
- Dual Glazed Windows
- Electrical System w/Neutral Loss Protection
- Exterior Entertainment Center w/32" LED HDTV & High Output, Splash-proof AM/FM/DVD Sound System
- Fiberglass Rear Cap w/High-Mounted Center Brake Light
- Fiberglass Wheel-Well Trims
- Five-Point Build System™
- Frameless Flush Mount Windows
- Full-Body Paint
- LED Clearance Lights
- Park Cable Receptacle
- Power Awning w/LED Light Strip & Wind Sensor React
- Seamless Beltline Trim
- Tapered Slideout Box Tops & Debris Awnings
- Tuff-Roof™ Low-Maintenance Roof System
- Utility Compartment w/Exterior Shower
- Water Pump Switch (Located in Service Compartment)
Automotive
- 22.5" Aluminum Wheels
- Large One-Piece Bonded Windshield
- Mud Flaps
- Single-Motor Windshield Wipers w/Wet Arm
- Under-hood Utility Light
Exterior Safety/Convenience
- 20' Sewer Hose
- 4-Wheel ABS Brakes
- (4) 6V/Deep-Cycle House Batteries
- Automatic Hydraulic Leveling Jacks
- Automotive Safety Glass
- Daytime Running Lights
- Easy-Sweep Flooring at Entry Step
- Entry Assist Handle
- Entry Door w/Screen Door & Deadbolt Lock
- Large Egress Window
- Lighted Entry Assist Handle
- Porch Light (Door-side)
- Power Entry Step
- Rear, Front and Side Marker Lights (Select LED)
- Toilet Tank San-T-Flush™ System
- Touch Sensor Tank Monitoring System
- Utility Compartment w/Exterior Shower
Storage
- Continuous One-Piece Compartment Seals
- Lighted Compartments
- Pass-Through Storage
- Rotocast Molded Storage Boxes
Body Structure
- Basement Storage
- Heated Water & Holding Tank Compartments
- Power Bridge® Chassis Construction
- Powerframes™ Precision, Welded
- Aluminum Interlocking Frames
- Powerlock System™ (Interlocking Floors, Walls, & Ceiling)
- Radiused & Cambered Entry Door
- Raised Space Frame Foundation
- Solid Bead-Foam Engineered Fit Insulation™
